iPhone Duo Mockup Generator
Drop in a screenshot and download it inside the iPhone Duo frame as a PNG, closed or open. Closed, the screen is 466 × 678 CSS px with a punch hole camera. Open, it is 951 × 669 with no cutout. The frame comes in Night Sky and Star White. Your screenshot stays in your browser.
iPhone Duo screen size and viewport

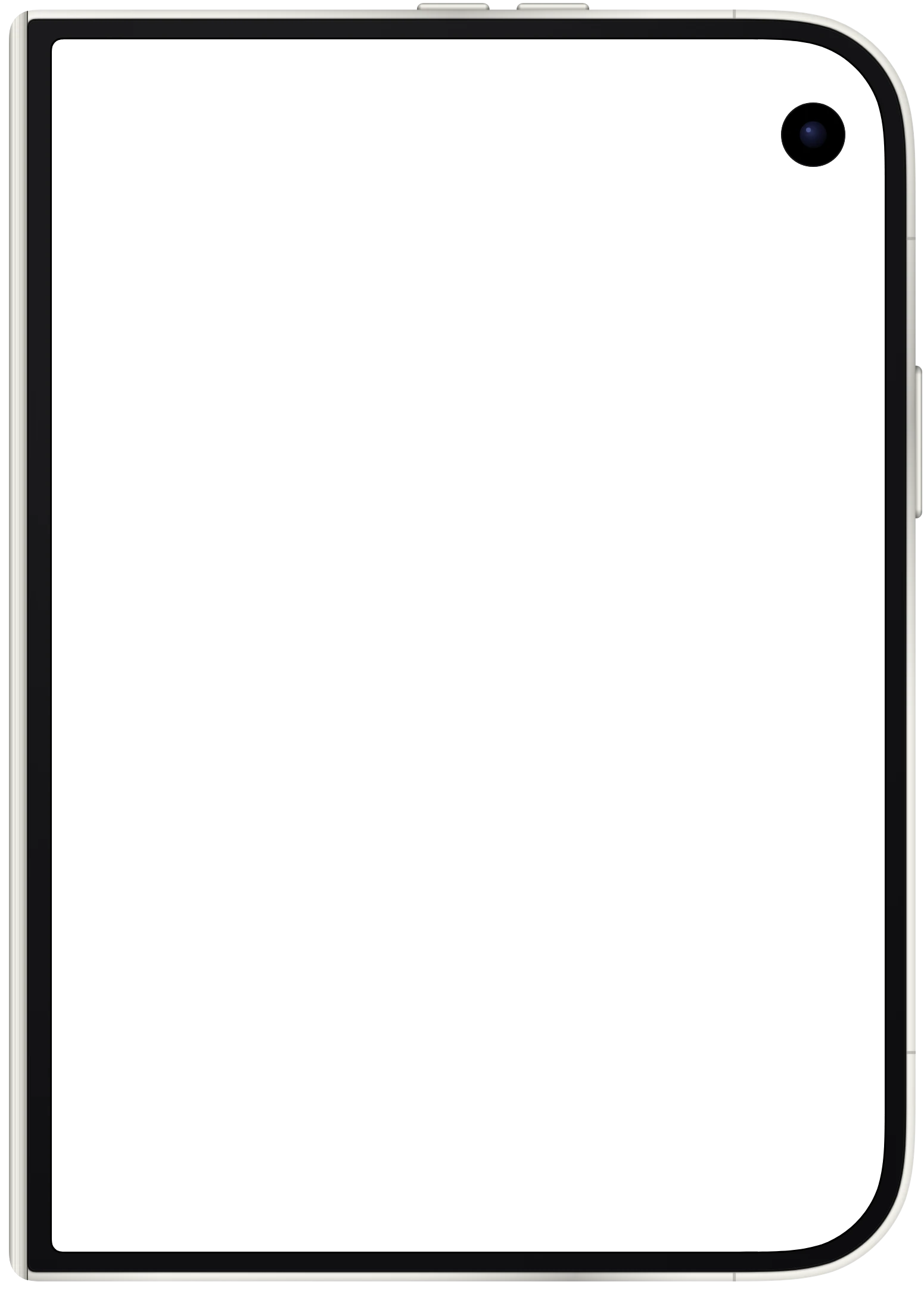

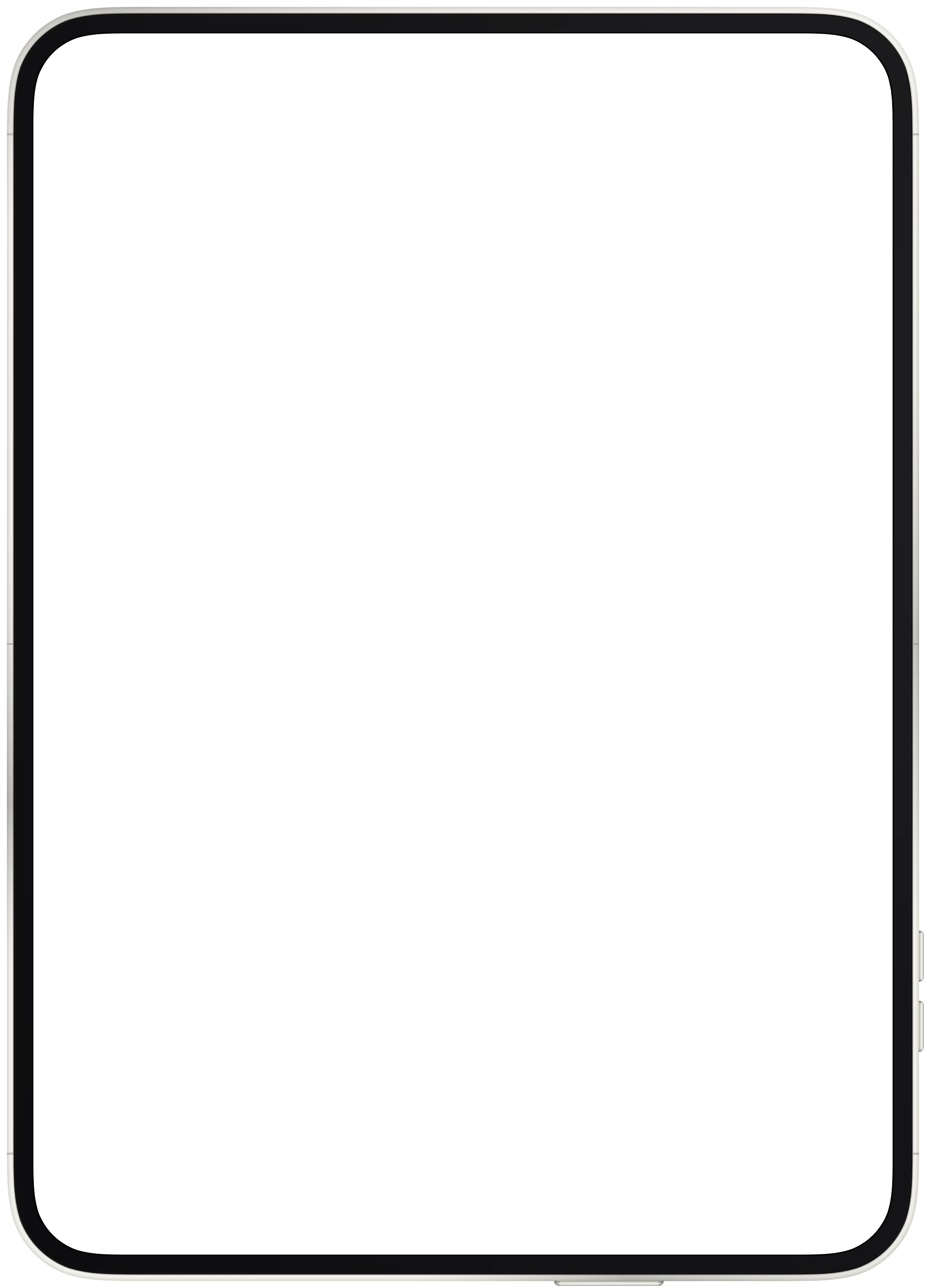

Apple's first folding iPhone. Closed, the outer display is 466 by 678 with the clock, status ring and controls in a strip down the right edge. Open, the inner display is 951 by 669 and lands in landscape by default.
The punch hole camera is part of the bezel art and covers a small circle of the screenshot near the top edge. The viewport below is what Hoverify's responsive viewer renders the page at for this device, in CSS pixels. The frame image is that viewport plus the bezel, at 3 pixels per CSS pixel. Rows marked "in the frame image" are in those pixels, so they drop straight into Figma or Photoshop at the frame's full size.
- Viewport (CSS px)
- 466 × 678
- Device pixel ratio
- 3
- Physical pixels at that ratio
- 1398 × 2034
- Operating system
- iOS
- Screen cutout
- Punch hole camera
- Status bar height
- None (controls sit in a side strip)
- Navigation
- Gesture bar
- Screen corner radius
- 18 / 168 / 168 / 18 px in the frame image (6 / 56 / 56 / 6 CSS px), top left, top right, bottom right, bottom left
- Frame image
- 1551 × 2166 px at 3× (517 × 722 CSS px)
- Screen opening offset
- 87 px from the left, 66 px from the top in the frame image (29 and 22 CSS px)
- Finishes
- Night Sky, Star White
- Orientation
- Portrait only
- Viewport (CSS px)
- 951 × 669
- Device pixel ratio
- 3
- Physical pixels at that ratio
- 2853 × 2007
- Operating system
- iOS
- Screen cutout
- None
- Status bar height
- 24 CSS px
- Navigation
- Gesture bar
- Screen corner radius
- 156 px in the frame image (52 CSS px)
- Frame image
- 2163 × 3009 px at 3× (721 × 1003 CSS px)
- Screen opening offset
- 78 px from the left, 78 px from the top in the frame image (26 and 26 CSS px)
- Finishes
- Night Sky, Star White
- Orientation
- Landscape by default
iPhone Duo frame PNG and WebP download
The bare bezel with a transparent screen opening, one file per finish. The WebP is the file the Hoverify extension ships. The PNG is decoded from it in your browser when you click, and the pixels are identical. You can use both in personal and commercial work under the device frames license, and credit is optional.
Frequently Asked Questions
Have a question we haven't answered? Get in touch.
Test your live site on every device at once
The responsive viewer in Hoverify loads your page inside this frame at 466 × 678, with Safari's bars drawn around it, next to every other device you have added. Scroll one and they all scroll. Capture a framed screenshot from the device header when it looks right.
